Simple structure, convenient operation and easy maintenance.
Automatic lid folding, top and bottom sealing completed in one go.
Low noise, smooth operation, and no damage to the carton.
Install blade protection devices to prevent accidental punctures during operation;
It can be seamlessly integrated with front-end and back-end devices.
The tape applicator has a precise and firm structure, operates smoothly and is durable.
The whole machine is compactly designed and occupies less space on the site.
It can be customized according to customer needs and is widely used in all walks of life.
Product parameters
|
GT-Z554 Folding Lid Sealing Machine |
|
|
|
Box sealing speed (box /min) |
25~30 |
|
|
Carton size The maximum or minimum size cannot exist simultaneously |
Length（mm） |
150~500 |
|
Width（mm） |
120~400 |
|
|
Height（mm） |
90~400 |
|
|
Total power（kw） |
0.2 |
|
|
Air pressure source supply（Mpa） |
6kgf/㎡ 90nl/min |
|
|
Net weight of the machine（Kg） |
175 |
|
|

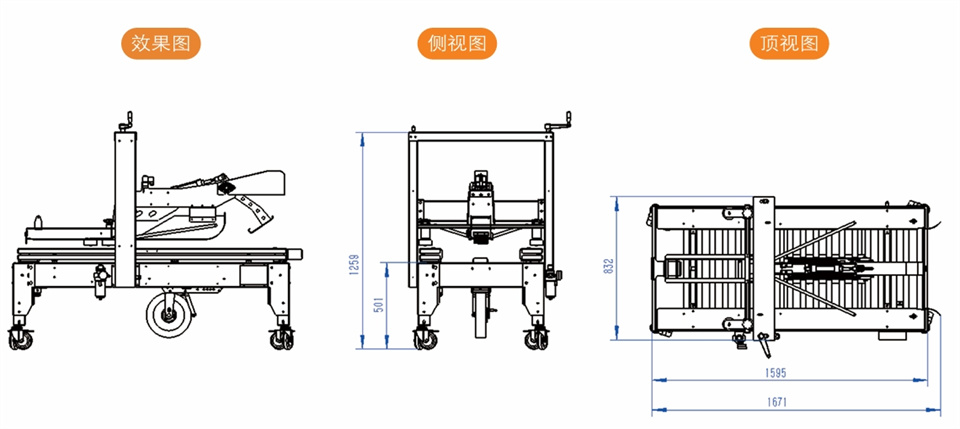

Machine external dimensions (length × width × height)（mm） |
1650×1050×1350 |
|
|
Power supply type |
AC 220V/380V 50/60Hz |
|
|
Applicable tape |
Width less than 72mm |
|
Product display
